SUPREME VSD77
We believe that excellence is not an option. It is an Attitude.
Information

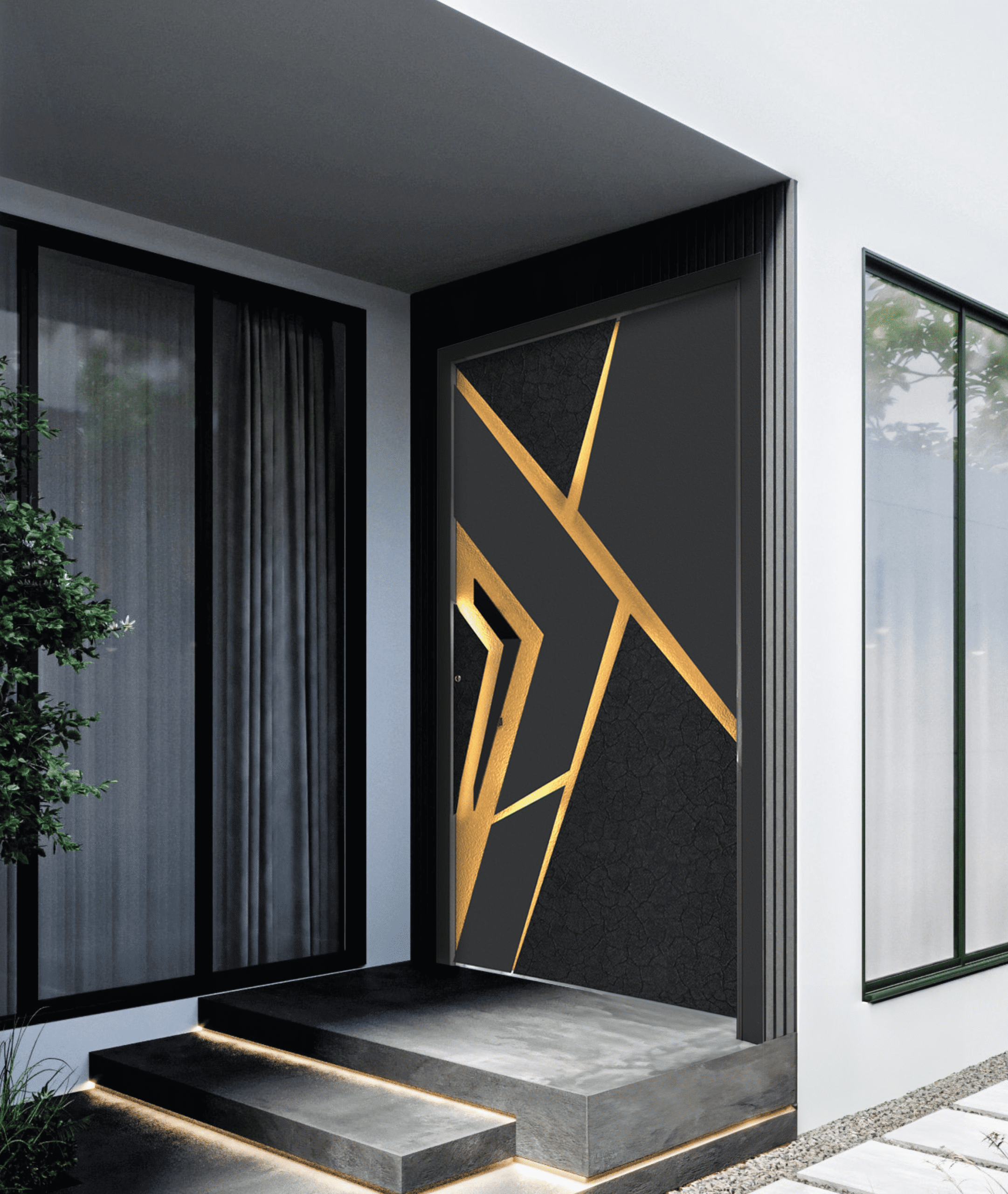

SUPREME VSD77 is ALUMIL’s system for quality entrance doors requiring modern design, high performance and emphasis on safety. The system provides the ability to create multiple constructions combined either with aluminium panels or with glazing infills. Thanks to its modern, flat and coplanar design, it offers elegant uniformity that enhances the innovative design and aesthetics of the series.
Advantages
- High energy savings thanks to high energy efficiency
- High security level
- Modern design
- Ease of access, ideal for people with special needs and children
- Exceptional sound insulation
- Ease of use and high functionality
- Wide variety of typologies and solutions
- Exceptional quality with certified performances
Specifications
THERMAL INSULATION
Yes
EXTERIOR SHAPES
Flat
FRAME DEPTH
77 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
23 up to 59 mm
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT
22 mm
TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam
UW
from 0,7 W/m2K
WATER TIGHTNESS
7A
AIR PERMEABILITY
4
WIND LOAD RESISTANCE
C4/B4
SASH WEIGHT
up to 180 Kg
UF
from 0,9 W/m²K
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
117 mm
TYPES OF TYPOLOGY
For all entrance door typologies with glass or aluminium panels
